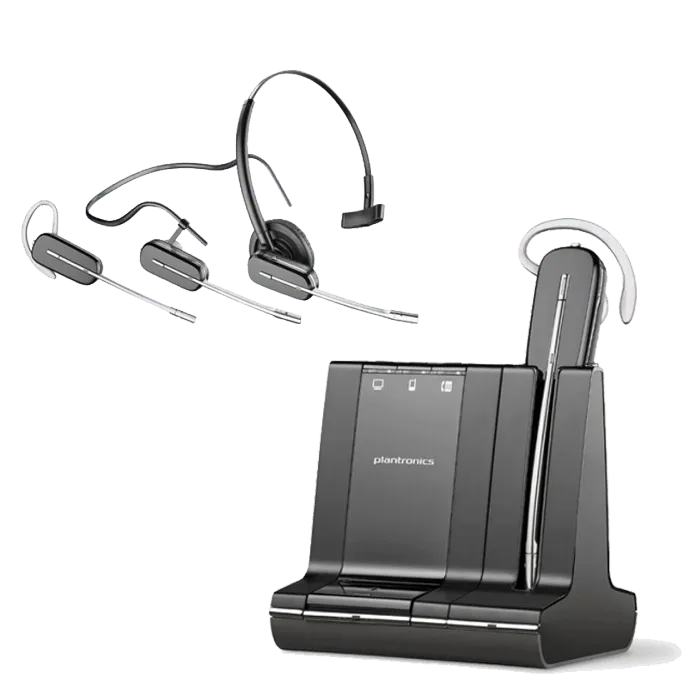

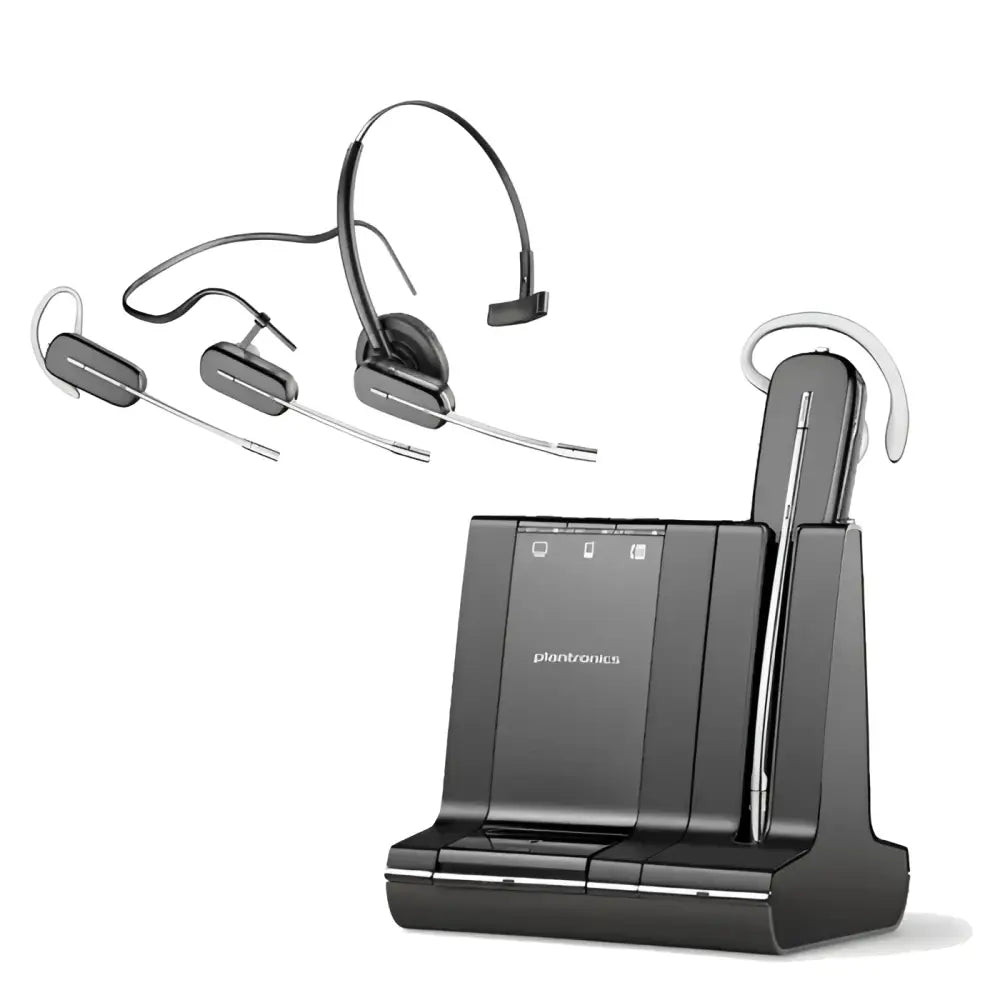

How to Set Up Your Plantronics Savi W740

1. Customize and Charge Your Headset

• Connect the battery (replaceable; use only genuine Plantronics batteries).

• Pick your preferred wearing style:

  • Over-the-ear

  • Over-the-head

  • Behind-the-head
    (Use the kit for assembly.)

• Attach the charging cradle to the base.

• Plug in the power supply—one end into the base, the other into a power outlet.

• Dock your headset in the base for at least 20 minutes to charge.

2. Connect to Your Desk Phone

• Choose setup type:

  • Standard connection

  • With HL10 lifter (sold separately)

  • With EHS cable (sold separately)

• Connect desk phone cables to the base as per your configuration.

• Short press the base desk phone button while wearing the headset to take calls.

• No dial tone? Open the base’s side panel and adjust the middle configuration switch (A–G) until you hear a dial tone (default A suits most phones).

• Make a test call from your desk phone. End calls using the headset call control button.

Tip: For remote call control, HL10 or EHS accessories may be required.

3. Connect to a Mobile Phone (Bluetooth)

• Hold down the Bluetooth pairing button on the Savi base (4 seconds) until the LED flashes red and blue.

• Place your mobile in Bluetooth search mode; select SAVI 7xx.

• If prompted, enter ‘0000’ as the passcode.

• Once paired (LED turns solid blue), short press the base mobile button to answer calls.

• Dial a test call from your mobile, and end using the headset’s call control button.

4. Connect to a Computer (Softphone/USB)

• Connect your Savi base to your computer using the supplied USB cable.

• Download and install Plantronics Hub software from plantronics.com/software for best performance.

• Short press the base computer button while wearing the headset to handle calls.

• Dial a test call using your computer’s softphone software, and end with the headset button.

Key Features & Controls

• Volume/Mute/Flash Button:

  • Short press up to increase volume, down to decrease.

  • Press in to mute/unmute.

  • If worn on the left ear, controls are reversed.

  • Flash: While on a call, long press (1.5 sec) up/down to hold a call and answer another.

• Call Control Button:

  • Short press to answer or end calls.

Troubleshooting & Safety Tips

• No dial tone on desk phone? Adjust the A–G switch for compatibility.

• Manual phone use: If you don’t use remote call control, you may need to manually lift the handset before each call.

• Audio or connection issues: Ensure the battery is correctly connected, and all accessories are Plantronics certified.

• Hearing safety: Always use your headset at moderate volumes to avoid hearing damage.

Frequently Asked Questions

Q: Can I switch between devices easily?
A: Yes! Tap the corresponding button on the Savi base to quickly switch between desk phone, mobile, or computer.

Q: Where can I get more support?
A: Visit plantronics.com/support or refer to the included online user guide for detailed instructions.
