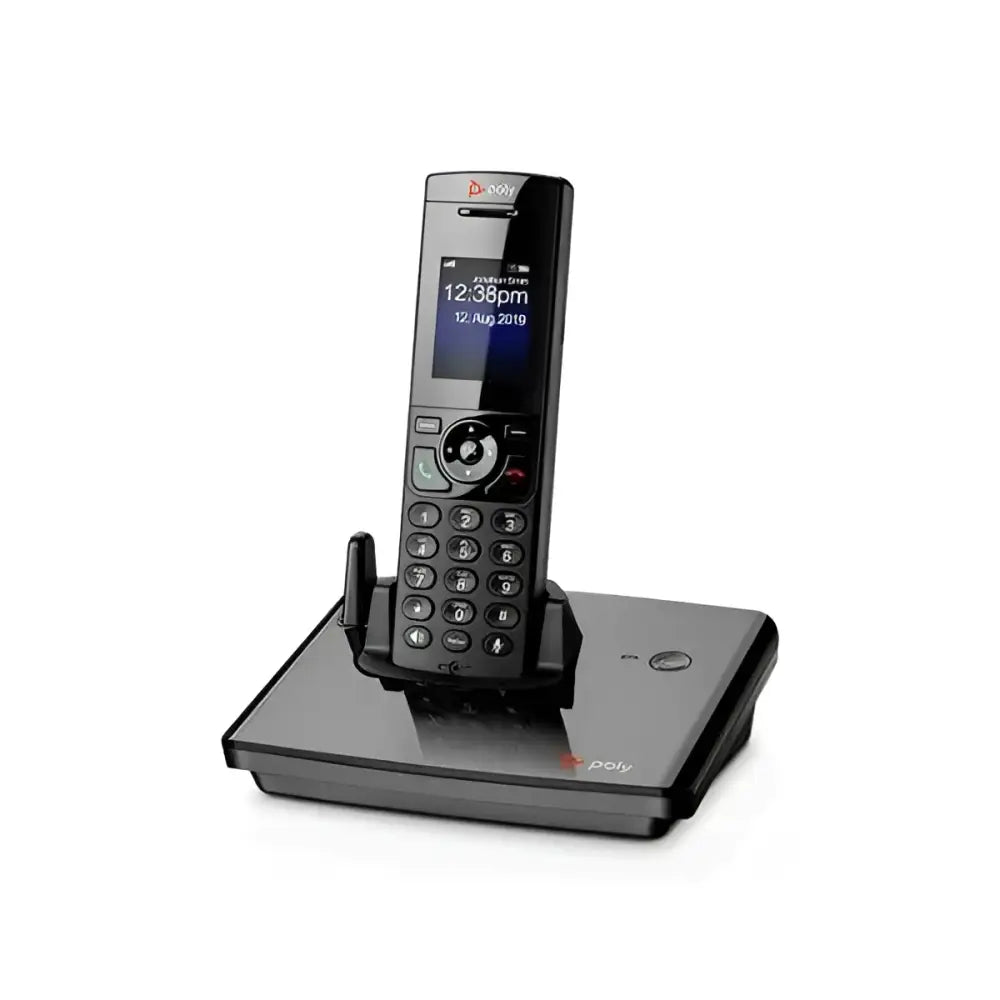

Polycom Poly VVX D230 FAQ and Quick Start Guide

Quick Start Guide: Set Up Your Poly VVX D230 (by Reef Telecom)

1. Setting Up the Base Station

• Placement: Keep the base station within 6 feet (1.8m) of a power outlet and Ethernet port. For best wireless range, elevate and avoid proximity to large electronic devices.

• Power: Connect the base station to AC power or use Power over Ethernet (PoE).

• Network: Use the supplied Ethernet cable to connect the base station to your network.

2. Charge and Power Up

• Insert the battery into the handset and place it in the charging cradle. Charge fully before first use.

• LED Indicator: Status LED on base and handset will illuminate to confirm power and charging state.

3. Registering Handsets

• To register the handset:

  • On the handset, navigate to Menu → Settings → Registration → Register.

  • Press and hold the Find button on the base for at least 5 seconds.

  • The handset will display the base station ID; select "Yes" to confirm registration.

  • Up to 10 handsets can be registered to a single base station.

4. Initial Configuration

• Access the web interface for advanced network or SIP setup if needed (get IP address from handset settings, then enter in browser).

• Reef Telecom tip: For provisioning or network settings, contact your IT support or Reef Telecom for faster setup and custom SIP integration.

Using Your Poly VVX D230

Handset Buttons & Navigation

• Soft keys: Context-sensitive options at the bottom of the screen.

• Navigation keys/OK: Scroll menus, adjust ring volume, select/confirm.

• Call/End keys: Start or end calls, power the device on or off.

• Mute, Speakerphone, and Redial: All with dedicated buttons for streamlined daily use.

• Keypad Shortcuts:

  • Long-press '*' to toggle ringer

  • Long-press '#' to lock/unlock keypad

  • Long-press '0' for international '+'

• LED Indicator: Flashes to indicate calls, messages, or missed calls.

Advanced Features

• Contacts Directory: Store and quickly retrieve important contacts directly on the handset.

• Speed Dials: Program up to nine numbers for instant connection to your most important colleagues or clients.

• Headset Support: Connect wired headsets using the included adapter for hands-free operation.

Reef Telecom Pro Tips

• Handset Range: Enjoy up to 165ft (50m) indoors and up to 980ft (300m) outdoors. For best performance, place the base station centrally and away from interference.

• System Expansion: Register multiple handsets to a single base for team collaboration.

• Firmware and Provisioning: Contact Reef Telecom to keep your devices up to date and securely configured for your VoIP solution.

• Troubleshooting: Power-cycle base and handset if registration fails, and verify network connection.

Frequently Asked Questions

• How do I reset or re-register a handset?

  • Unregister, then repeat the registration steps above.

• Can I connect a headset?

  • Yes, use the included adapter to connect most standard headsets.

• Can I access the phone’s web interface?

  • Yes, get the IP from handset settings, then access via a web browser for advanced configuration.

Deploy your Poly VVX D230 phones with confidence, backed by Reef Telecom’s expert support. Enhance communications with maximum mobility, reliability, and feature-rich VoIP—perfect for modern business environments.
