Algo 8373 PoE IP Zone Paging Adapter - ALGO-8373 - New

New with Warranty ALGO-8373

Features:

• PoE compatible

• 7 Page extensions map to possible zone permutations + 1 page extension for keypad zone control + 1 extension for notifications
• Transmit or receive using multicast IP address mapped to paging zone(s).
• Linux OS processor

For business or home office use

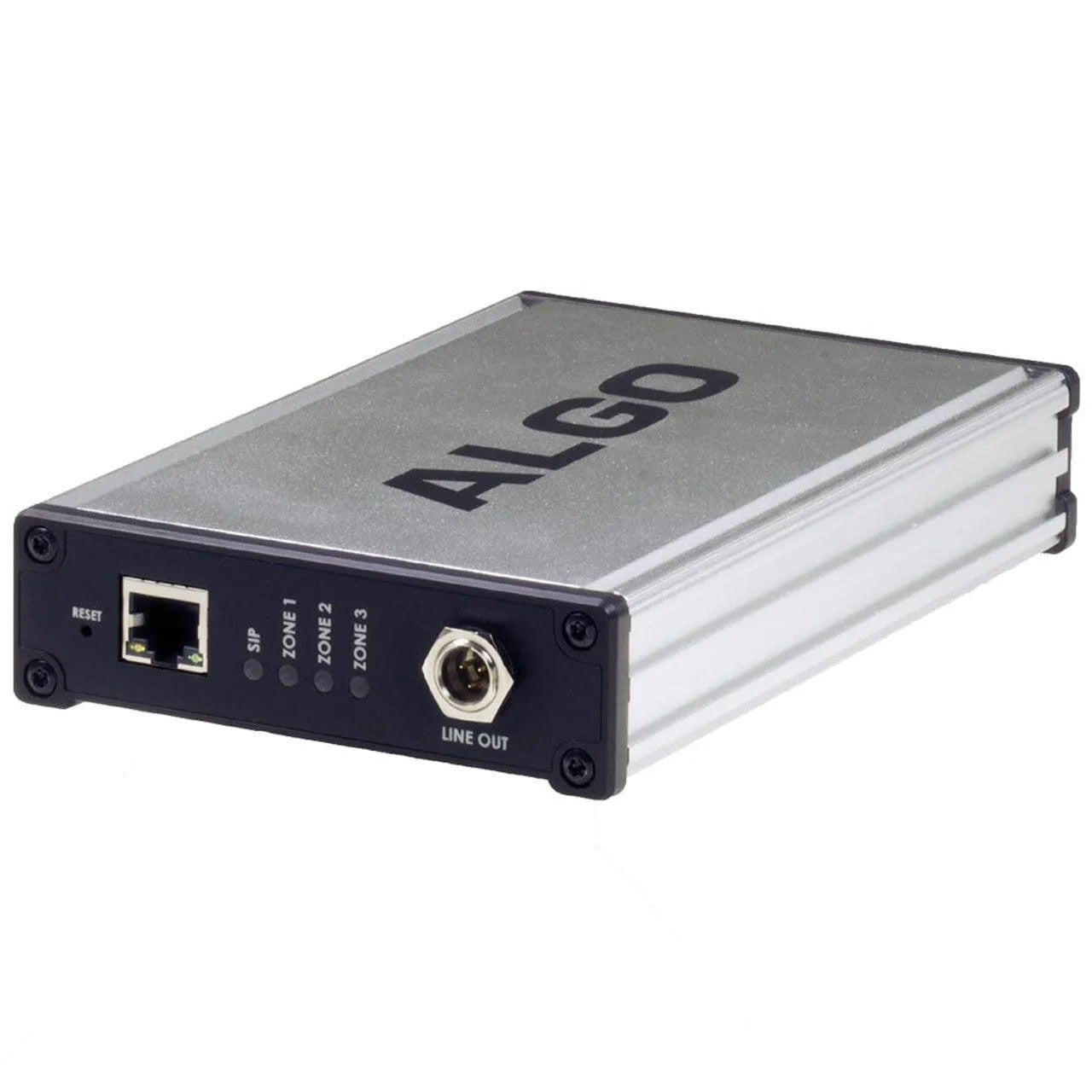

The 8373 is a PoE IP Paging Adapter for integrating existing and traditional zoned paging solutions into a VoIP environment, whether premise or hosted. Features include G.722 wideband support with isolated and balanced line output for optimum clarity and intelligibility without hum or noise. To the network side, the 8373 is a SIP endpoint for easy integration with an UP telephone system and easily configured using the intuitive web interface or provisioning capabilities.

On the paging side, the 8373 provides balanced audio output using both an XLR connector and terminal block for easy connection to an amplifier, along with a dry contact closure if required by the amplifier. The high voltage audio output of the amplifier is wired back to the 8373 and connected to up to three separate speaker zones using high current internal zone control relays. The zone control relays are activated appropriately prior to paging based on the SIP extension called, multicast IP address received, or keypad input. For scalability, multiple 8373 Paging Adapters can be used to support as many page zones as required from a single amplifier.
