Cisco

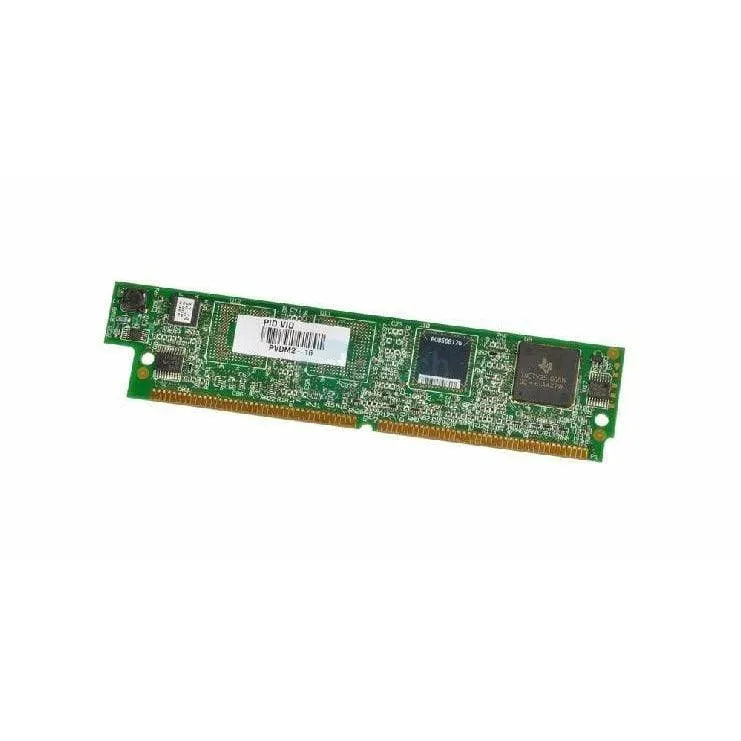

Cisco Module PVDM2-8

$98.98 USD

Sale Sold out

Shipping calculated at checkout.

Free Ground Shipping Over $300
Industry-Leading 10 Year Warranty
Same Day Shipping Before 4PM EST

Item Description

Fully Refurbished and Tested with Lifetime Warranty

The Cisco® High-Density Packet Voice Digital Signal Processor (DSP) Module (PVDM2) enables Cisco Integrated Services Routers to provide high-density voice connectivity, conferencing, and transcoding capabilities in Cisco IP Communications solutions. Cisco Integrated Services Routers provide enterprises and service providers with a toll bypass solution by connecting their existing telephony equipment (such as private branch exchanges [PBXs], key systems, analog telephones, and fax machines) to a toll-free data network and eventually migrating customers to Cisco Unified Communication Architecture for Voice, Video and Integrated Data IP telephony solutions.

The high-density packet voice DSP modules are available in five versions: PVDM2-8, PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64 (Figure 1). Tables 1 and 2 show the number of voice channels and codecs that each PVDM2 module supports.

Figure 1. PVDM2 Top and Bottom Views

	Top	Bottom
PVDM2-64
PVDM2-48
PVDM2-32
PVDM2-8 and PVDM2-16

Table 1. Channel Density of Each PVDM2 Module

Name	Description*	Maximum Number of Channels in G.711	Maximum Number of Channels in High-Complexity Codecs	Maximum Number of Channels in Medium-Complexity Codecs
PVDM2-8	8-channel packet fax and voice DSP module	8	4	4
PVDM2-16	16-channel packet fax and voice DSP module	16	6	8
PVDM2-32	32-channel packet fax and voice DSP module	32	12	16
PVDM2-48	48-channel packet fax and voice DSP module	48	18	24
PVDM2-64	64-channel packet fax and voice DSP module	64	24	32

* The number of channels in PVDM2 product numbers and descriptions is the maximum channel density with the G.711 codec.

Table 2. Codec Support on the PVDM2 Module

Name	High-Complexity Codecs	Medium-Complexity Codecs
PVDM2 Module	G.723.1, G.728, G.729, G.729b, iLBC, and Modem Relay	G.7112, g.729a, G.729ab, G.726, G.722, and Fax Relay

* PVDM2 can support a higher density of G.711 calls than that of other medium-complexity codecs. See Table 1.

PVDM2 connects to the host through 80-pin single inline memory module (SIMM) slots. The module is field insertable and removable. Figure 2 shows how PVDM2 is plugged into PVDM2 SIMM slots on the Cisco high-density digital voice network modules.

SKU #: PVDM2-8
UPC: 746320860183
MPN: PVDM2-8
