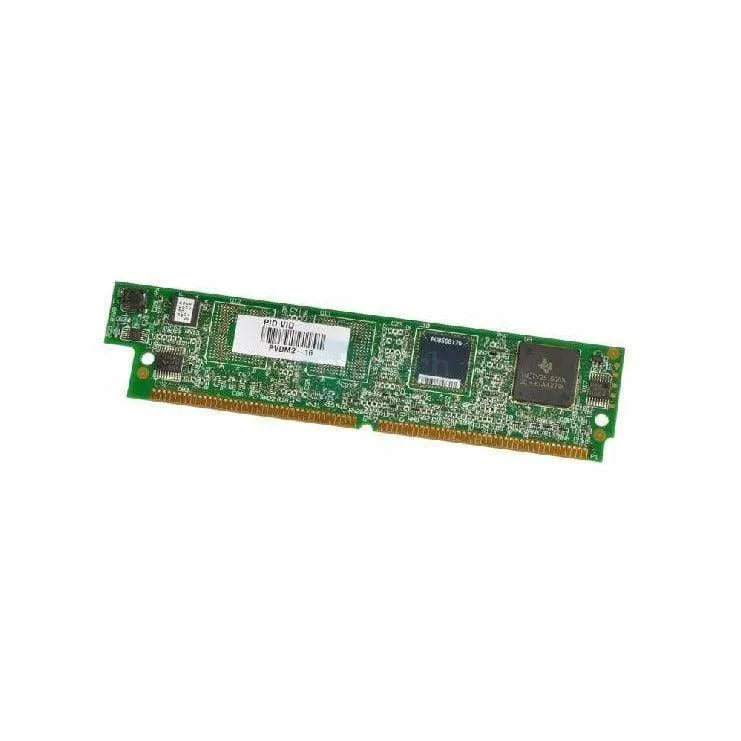

Cisco Module PVDM2-64

Cisco Module PVDM2-64

Regular price $32.05 USD
Regular price $120.41 USD Sale price $32.05 USD
Sale Sold out


Shipping calculated at checkout.
Size
  • Free Ground Shipping Over $500
  • 3 Year Warranty Standard
  • Same Day Shipping Before 4PM EST
Carbon-neutral shipping with Shopify Planet
Carbon-neutral shipping on all orders
322kg
shipping emissions removed
That's like...
824
miles driven by an average gasoline-powered car
Fully Refurbished and Tested with Lifetime Warranty

The Cisco® High-Density Packet Voice Digital Signal Processor (DSP) Module (PVDM2) enables Cisco Integrated Services Routers to provide high-density voice connectivity, conferencing, and transcoding capabilities in Cisco IP Communications solutions. Cisco Integrated Services Routers provide enterprises and service providers with a toll bypass solution by connecting their existing telephony equipment (such as private branch exchanges [PBXs], key systems, analog telephones, and fax machines) to a toll-free data network and eventually migrating customers to Cisco Unified Communication Architecture for Voice, Video and Integrated Data IP telephony solutions.

The high-density packet voice DSP modules are available in five versions: PVDM2-8, PVDM2-16, PVDM2-32, PVDM2-48, and PVDM2-64 (Figure 1). Tables 1 and 2 show the number of voice channels and codecs that each PVDM2 module supports.

Figure 1. PVDM2 Top and Bottom Views



Top

Bottom

PVDM2-64

PVDM2-48

PVDM2-32

PVDM2-8 and PVDM2-16



Table 1. Channel Density of Each PVDM2 Module

Name

Description*

Maximum Number of Channels in G.711

Maximum Number of Channels in High-Complexity Codecs

Maximum Number of Channels in Medium-Complexity Codecs

PVDM2-8

8-channel packet fax and voice DSP module

8

4

4

PVDM2-16

16-channel packet fax and voice DSP module

16

6

8

PVDM2-32

32-channel packet fax and voice DSP module

32

12

16

PVDM2-48

48-channel packet fax and voice DSP module

48

18

24

PVDM2-64

64-channel packet fax and voice DSP module

64

24

32



* The number of channels in PVDM2 product numbers and descriptions is the maximum channel density with the G.711 codec.

Table 2. Codec Support on the PVDM2 Module

Name

High-Complexity Codecs

Medium-Complexity Codecs

PVDM2 Module

G.723.1, G.728, G.729, G.729b, iLBC, and Modem Relay

G.7112, g.729a, G.729ab, G.726, G.722, and Fax Relay



* PVDM2 can support a higher density of G.711 calls than that of other medium-complexity codecs. See Table 1.

PVDM2 connects to the host through 80-pin single inline memory module (SIMM) slots. The module is field insertable and removable. Figure 2 shows how PVDM2 is plugged into PVDM2 SIMM slots on the Cisco high-density digital voice network modules.


SKU #: PVDM2-64-R
UPC: 746320860213
MPN: PVDM2-64
